Open source · MIT · Swift 6 · macOS 14 + iOS 17
Portal is the native macOS and iOS client for Harness, an opinionated fork of Hermes Agent. Harness adds the WebSocket JSON-RPC gateway and the agent-side machinery a rich client needs; Portal is the surface built for it — no local server, no CLI, no Electron. What arrives over that socket is not just text: tool calls, reasoning traces, subagent spawns, artifacts, cron dataflow and approvals all get a real surface built for them. (It also speaks Centaur, over REST + SSE, for the reduced surface that backend allows.)
THE SHORT VERSION
SwiftUI throughout, Swift 6 strict concurrency, and Apple frameworks
for everything load-bearing: URLSessionWebSocketTask for
the transport, SecItem for credentials. There is no
third-party networking library in the app.
Harness
is a fork of
Hermes Agent
whose every change exists to serve this client: the
/v1/ws gateway, a wiki API with an edit history, a cron
dataflow graph, living artifacts, learning, a file browser.
The full set is published as a
fork diff
that Harness's CI keeps current.
Centaur
(REST + SSE) and Hermes Standard (management HTTP) are also supported;
each declares its capabilities, so the UI only offers what the
connected backend can honour.
A single prompt fans out into tool calls, reasoning beats and spawned subagents. Portal keeps that structure instead of flattening it to prose — which is what makes the timeline, the graph and the token rollups possible.
FEATURE SET
Every image below is a real render of the shipping SwiftUI view, captured from the app's own code with sample data — not a mockup. Surfaces that can only be captured against a live gateway are described in prose rather than staged.

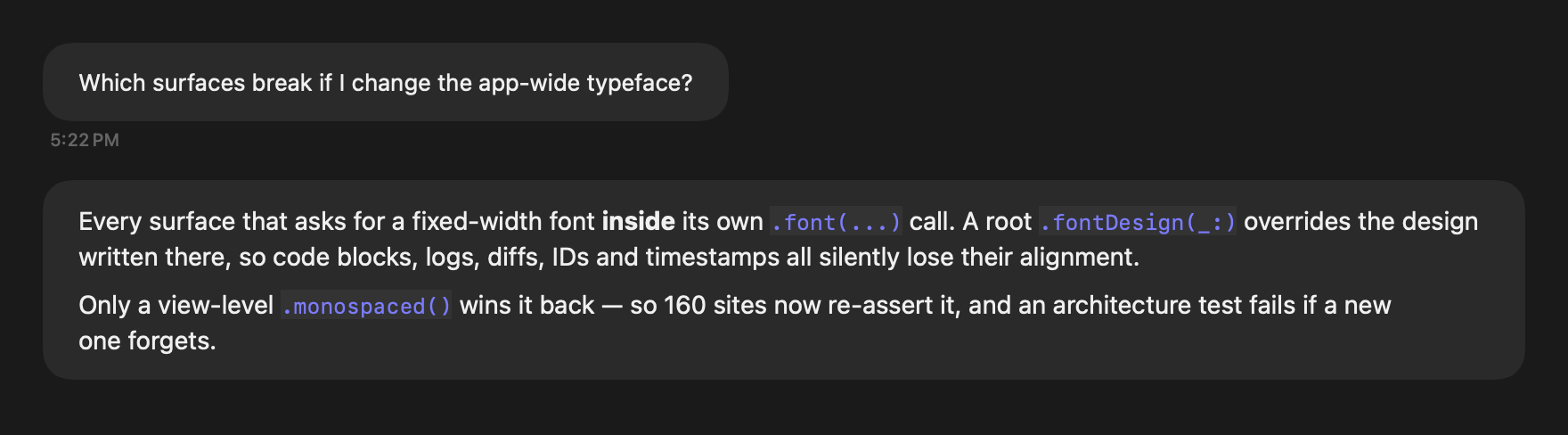

01 — CHAT
Responses stream in as markdown with syntax-highlighted code, Mermaid diagrams, LaTeX, tables and file attachments. Reasoning traces arrive as a collapsible section rather than being interleaved into the answer, so the transcript stays readable while the thinking stays available.
Deltas arrive fast enough to cause layout storms, so events are batched on a ~32 ms window before they reach the view — the transcript keeps up with a firehose without dropping frames.

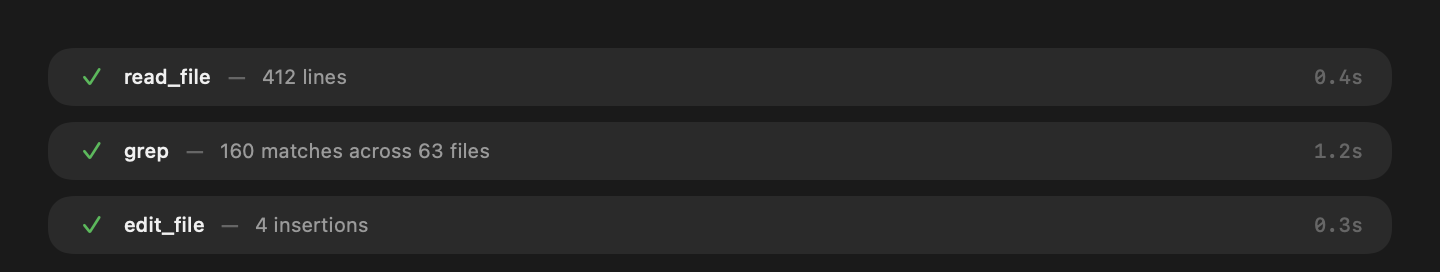

02 — TOOL TRACE
The default transcript is just the conversation. The tool trace — what ran, against what, for how long — is an opt-in canvas panel, so a fifty-call turn doesn't bury the answer it produced.
Each pill carries the tool name, its target, a result summary and elapsed time. Durations and identifiers stay monospaced no matter which app typeface you pick, because columns that jitter are columns you can't scan.

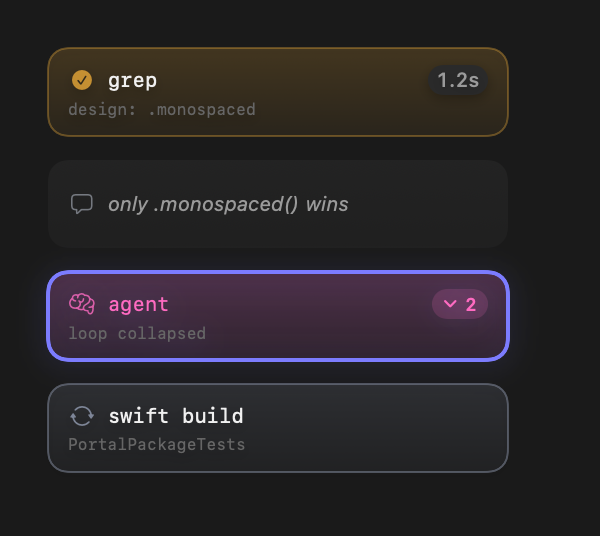

03 — THOUGHT GRAPH
The turn is drawn as a flamechart: horizontal position is when a step started, bar width is how long it took, and every actor — the main loop plus each spawned subagent — owns its own lane. A compact strip sits inline in the chat; tapping it opens the full plot with the time ruler, reasoning gists and a per-node inspector.
Reasoning beats are durationless diamonds. Subagent lanes collapse to a step count. An on-device MLX model summarizes long reasoning streams into the gists the graph labels itself with.
04 — CANVAS
The conversation is one resizable panel on a free-form canvas. Any message can be peeled into a floating card, and roughly two dozen lenses dock beside it — flamechart, thinking beats, running tools, the skills taxonomy for the turn, the files it touched, session artifacts, delegation batches, cron activity, sessions timeline.
Panel kinds are registrable at runtime rather than a closed enum, so a saved layout referencing a lens this build doesn't know still loads — it renders a placeholder instead of crashing.
05 — THE WIKI
Not a document viewer. Pull requests, tickets, documents, Slack directives and usage rollups are ingested as raw events, and agents turn them into typed, wikilinked pages. The wiki's home is the force graph itself — a 2D canvas by default, SceneKit in 3D as a toggle — with a folder sidebar, a changeset drawer showing git-style inline diffs, and a reader that docks over the still-live graph. You can pin pages to compare them side by side.

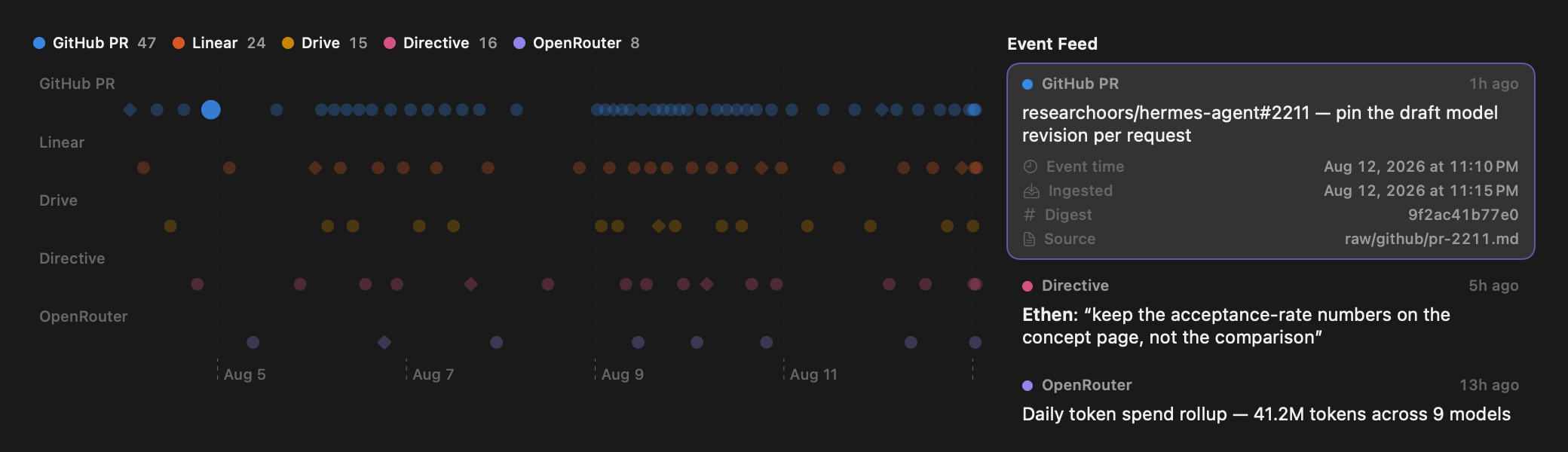

The events page is where a vault stops being a folder of markdown and starts being auditable. Every ingested source lands on one event-time axis in a lane per kind, and plot and feed share a single selection — click a dot, its row expands. A hollow diamond means the pipeline only knew ingest time. A digest on the row is how you tell a re-ingest from a genuinely new version. Where a backend records it, an event carries the changesets it caused, so provenance walks event → changeset → page without a second round trip.

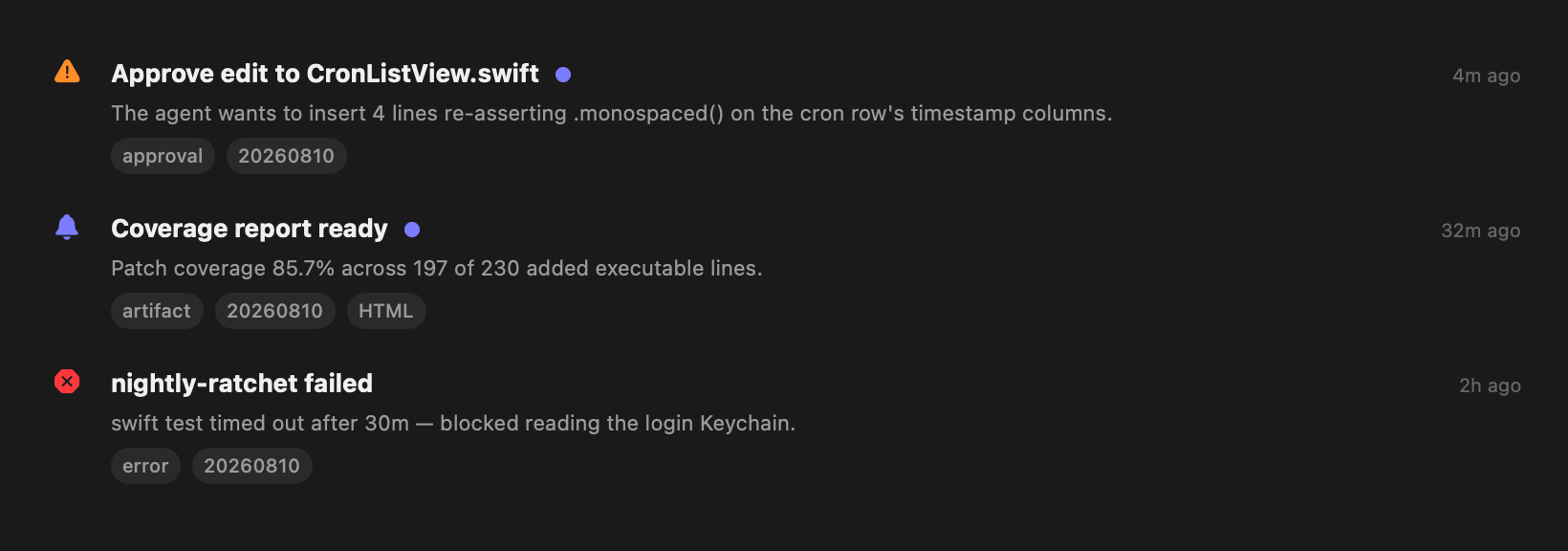

06 — ACTIVITY INBOX
Tool approvals, clarification requests, artifact drops and failures land in a severity-sorted inbox with session pills and artifact previews. Approvals matter most: the gateway resolves an unanswered request as a denial after a timeout, so a request you never saw is a silently killed command.
Because parallel subagents can each block at once, the approval banner reads a queue rather than a single slot — the head is answerable and the rest stay visible behind a disclosure. Approve is a split control: the primary tap is the narrow "once", broader scopes are a deliberate second gesture.

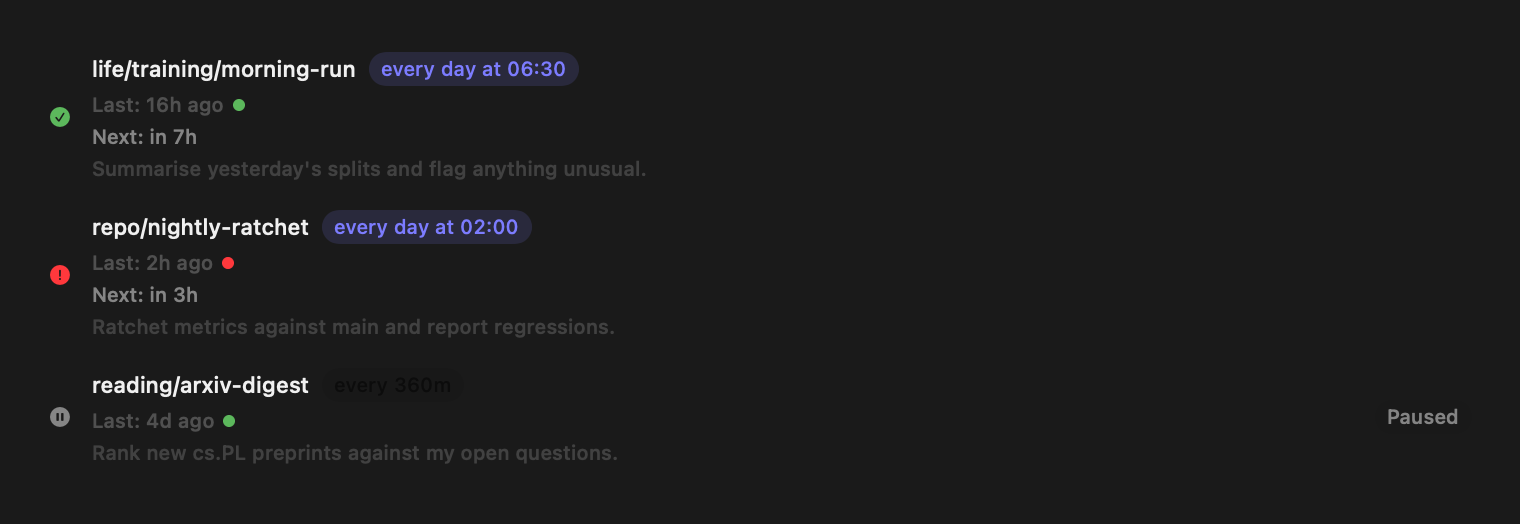

07 — SKILLS & CRON
Browse, edit and schedule agent skills; group cron jobs into categories; and inspect run history as an activity canvas — volume over time, per-job OK/error breakdown, a lane-per-job scatter of activations, and the session each activation opened.
Sessions get the same treatment through Mission Control: a spawn tree, a live observer, a playback timeline, prompt breakdowns and token usage — all as panels on a canvas you arrange.
08 — LIVING ARTIFACTS

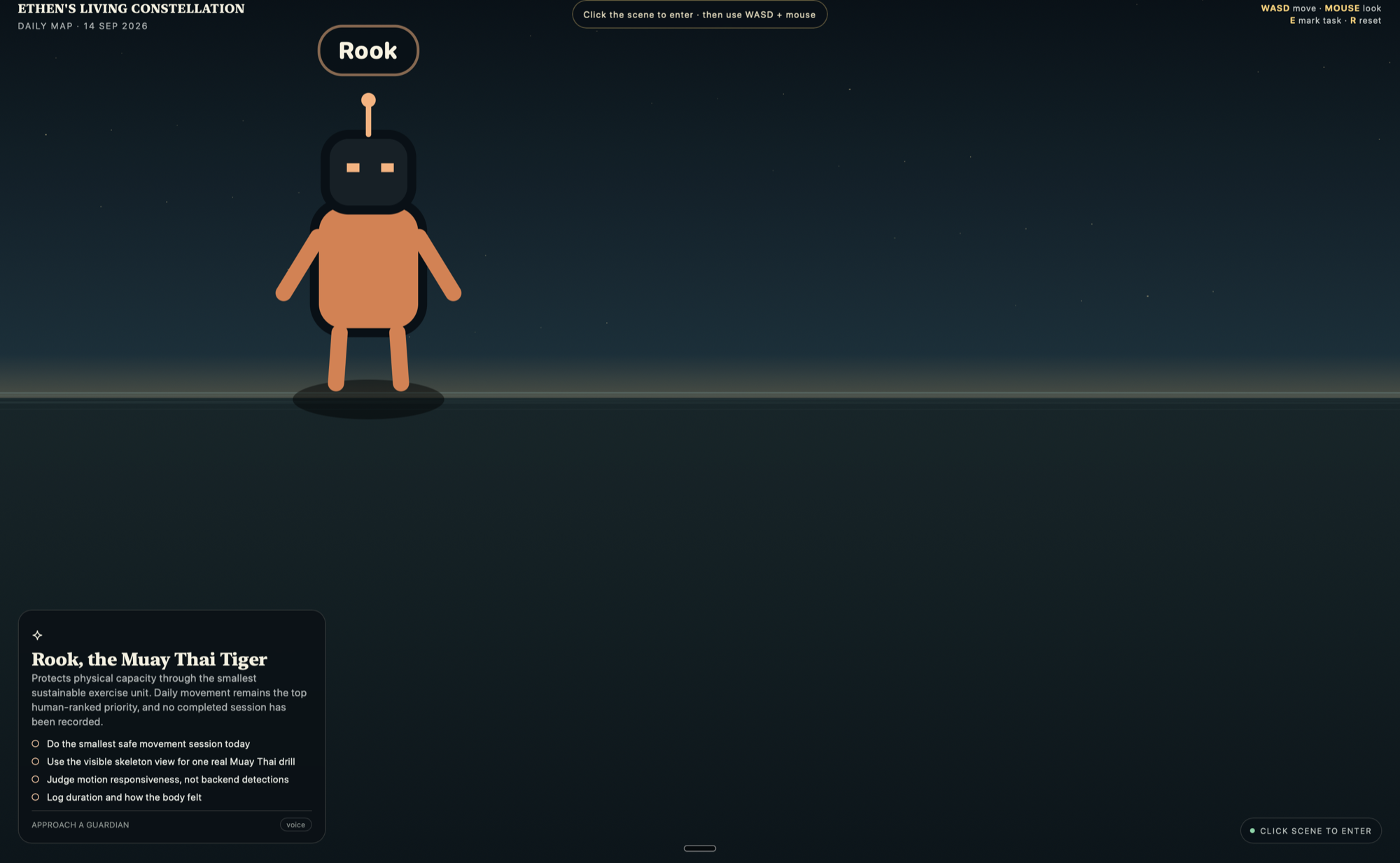

An artifact is a named object the agent keeps across turns and sessions, not a rendered message — it accumulates revisions instead of being replaced. Ask for a walkable 3D world and you get one, hosted in a real window with the mouse captured through Pointer Lock.
The part that matters is that the world is not a picture. Objects in it can carry declared intents, so aiming the crosshair at something and clicking dispatches a real backend action — including kicking off a contained agent session you can then click straight into. The same contract puts buttons on a dataset row.
Artifacts never carry executable authority. They declare intents as data; the page markup is inert attributes with no script, fetch or credential, and the host injects the only bridge that exists behind a per-view nonce. The gateway re-resolves every click against the pinned revision, and confirmation for anything destructive is native chrome led by the server's own name for the action — not the artifact's label.
Sessions author and revise; crons maintain. An artifact declares which jobs tend it, so the app can tell you "a job refreshes this every six hours" rather than leaving you to guess whether something written once is still true.

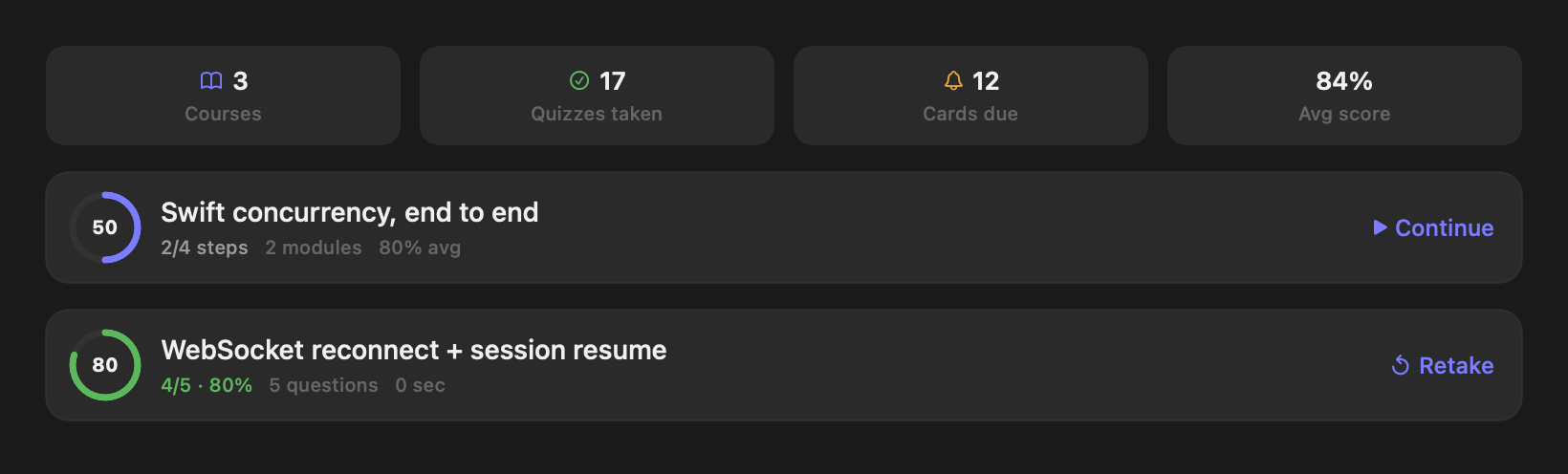

09 — LEARNING
Any conversation can become a structured course: ordered modules of lessons and quizzes, with per-step progress so "where was I" is answerable at every level. Flashcard decks use SM-2 spaced repetition and surface what's due.
Course content is stored inline rather than referenced by id — an agent-authored curriculum is its content, which also makes dangling references to a single historical quiz attempt impossible.

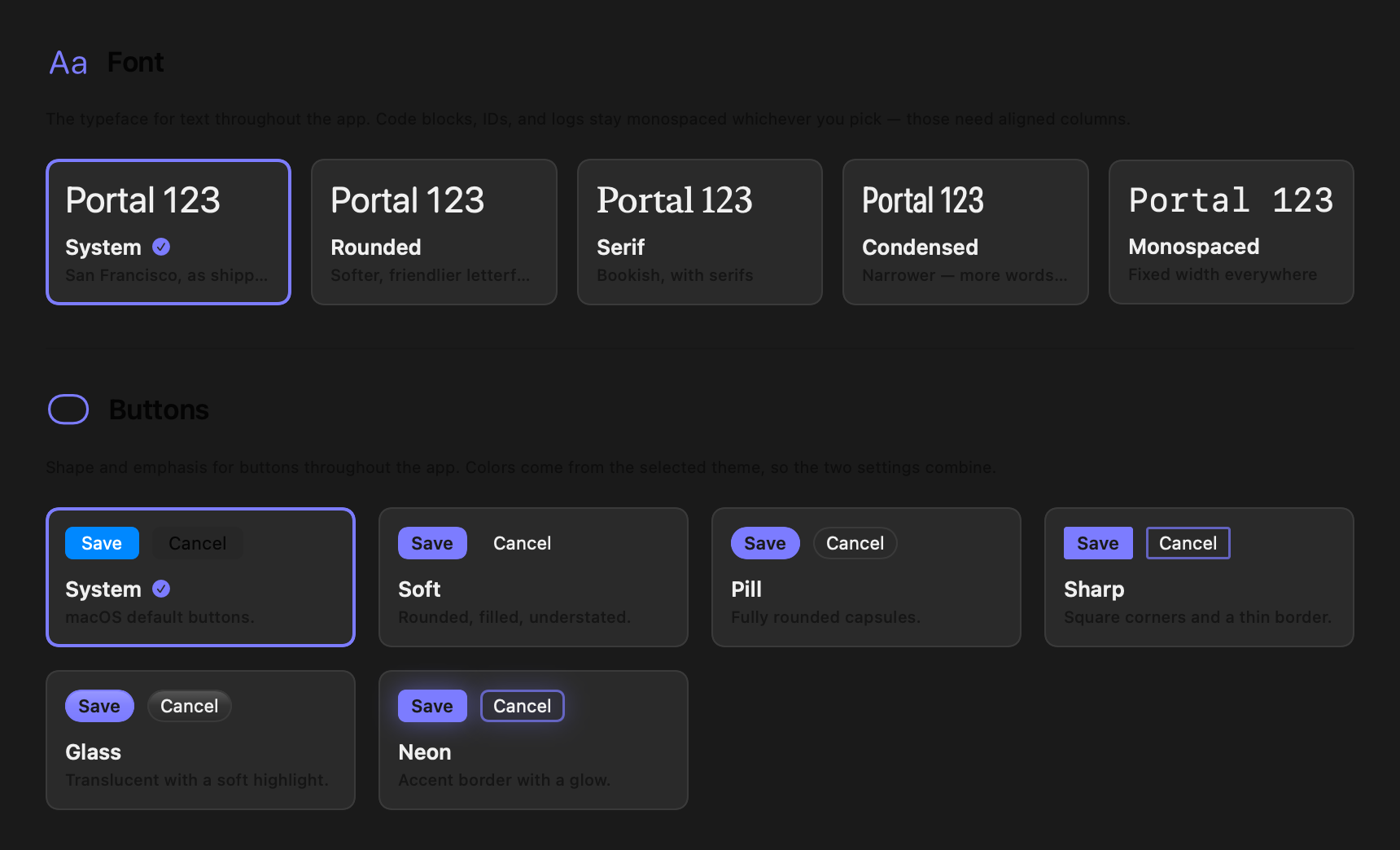

10 — APPEARANCE

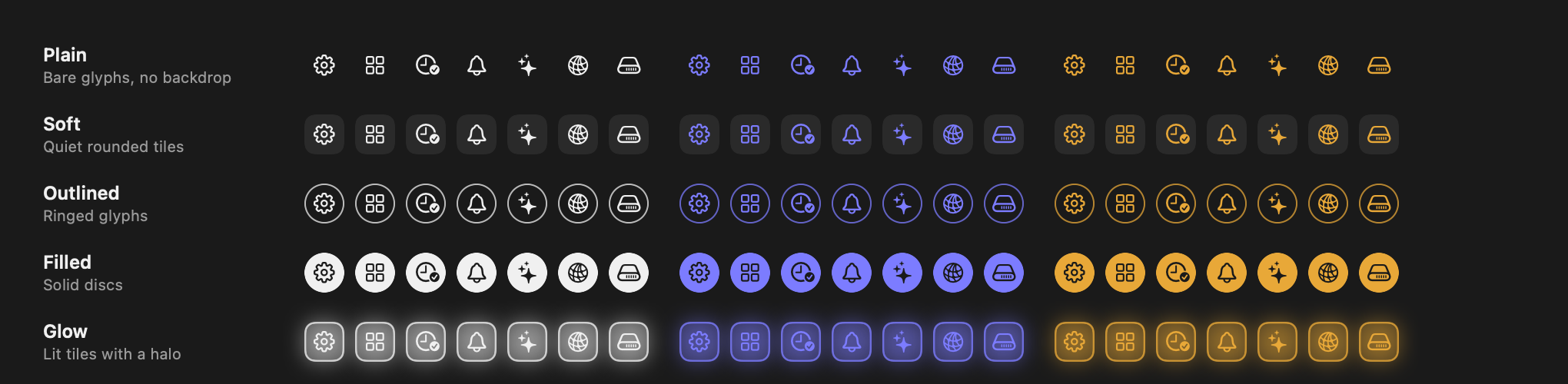

Palette, button shape, toolbar icon treatment and app typeface are all one pane. Themes apply collectively, and every individual toolbar button can still be overridden on its own — shape and colour independently, each clearable back to the theme.

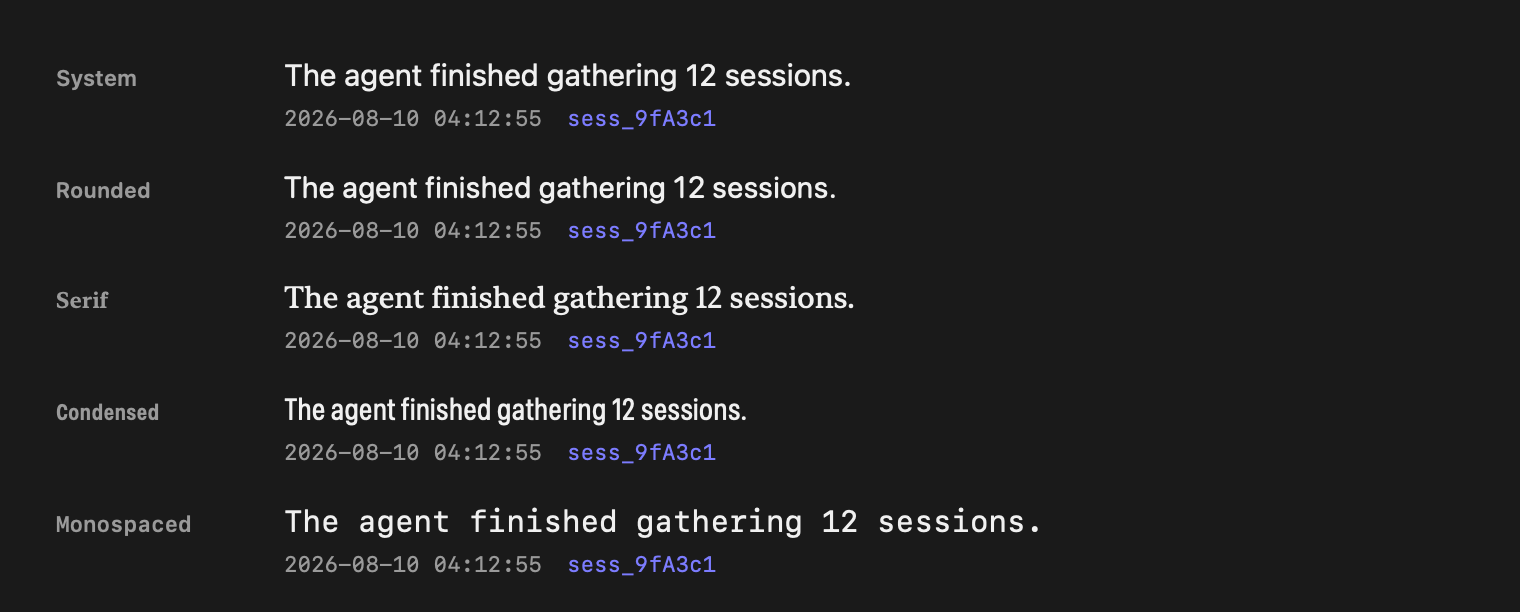

One root modifier reaches roughly 1,700 text call sites. The catch
found while building it: a root .fontDesign silently
overrides a design: written inside a site's own
.font(...), so every monospaced surface had to re-assert
itself at the view level. A test now enforces that, with a documented
allowlist for the surfaces defended by an ancestor instead.
ARCHITECTURE
Five layers, twenty-one components, one strict dependency direction:
Models → Services → ViewModels → Views. The interactive,
source-backed model lives in the
Architecture Observatory.
SwiftUI surfaces — app shell, chat, operations, wiki, artifacts, thought graph.
@MainActor observable objects holding chat, operations and wiki state.
The backend contract, Hermes and Centaur clients, the artifact-intent seam, and device-local services.
Value types, codable wire models, shared UI primitives and utilities.
The Harness gateway, Hermes Standard, the Centaur API, and OS device services.
ethenotethan/harness, the opinionated Hermes Agent fork
Portal is the client half of Harness. The gateway is
ethenotethan/harness,
a fork of
NousResearch/hermes-agent
that is rebased onto upstream periodically and documents everything it
changes on a
fork-diff page
its CI refuses to let go stale. The fork is what matters:
stock hermes-agent has no /v1/ws.
Upstream exposes only an OpenAI-compatible HTTP API, so the WebSocket
JSON-RPC endpoint — and with it the wiki, cron-graph, artifact,
learning, file-browser, feed and push-notification RPCs this app is
built on — exists only in Harness. Point Portal at a stock install
and the health probe passes while the socket upgrade fails.
Everything served over that one endpoint: session lifecycle,
prompt.submit, interactive approvals and clarifications,
subagent events, model catalog and switching, session timeline and
usage introspection, and voice.
The gateway advertises its own surface at
/v1/capabilities, so a feature the running gateway
doesn't have stays hidden rather than failing on use — and that
endpoint 404ing is the quickest way to tell you're on stock
upstream. docs/gateway-setup.md
walks through bootstrapping one, including the trap that
hermes update pulls upstream and removes
/v1/ws.
Centaur
is a different shape of backend, not a second Hermes: REST for
control, SSE for the stream, no WebSocket. Five endpoints under
/api/session/{thread_key} — create, append the user
turn, execute, interrupt, and an event stream that replays from
?after_event_id=N.
Its wire events are sparse — harness stdout plus execution
lifecycle — so CentaurEventAdapter normalizes them into
the same GatewayEvent enum the gateway emits, and the
chat view model renders a Centaur session unchanged. Because there
is no transcript-fetch endpoint, the persisted SSE cursor is the only
"where was I" marker; it survives launches so a resume doesn't replay
the transcript from zero.
The asymmetry is declared rather than discovered. Centaur runs
non-interactively in a sandbox, so approvals, subagent events,
skills, attachments, model switching, response styles and voice are
all off, and the gateway services — cron, activity inbox, feed,
learning — never apply. It gains what Hermes lacks: workflow
schedules and run history under /api/workflows/*, and
wiki reads over a public REST wiki API instead of
wiki.* RPCs. It also carries a fixed identity, since a
harness is a different agent platform and not a Hermes persona.
A single persistent WebSocket per app process. Sessions are
multiplexed over it by session_id, so creating or
switching a session never recreates the transport. Events fan out
through Combine; connections are deduped on a signature of URL, API
key and Cloudflare cookie, so redundant reconnects are skipped while a
genuine gateway switch rebuilds everything and resets in-memory state.
The short hex session_id addresses the current
connection; the database-format session_key (e.g.
20260810_041255_d91274) is what survives a reconnect.
Keepalive pings run every 15 s, reconnect backs off
1→2→4→…→30 s for up to ten attempts, and resume goes through the
session key.
/health, 5 s timeout./v1/ws with Authorization: Bearer.gateway.ready.session.create returns both id formats.prompt.submit, and the event stream begins.session_key.Centaur has no transport to establish — REST is usable the moment the client exists, so it reports connected until a request or stream actually fails, and its reconnect is the replayable SSE cursor rather than steps 1–4.
SwiftLint runs --strict against a frozen baseline, so
existing debt is allowed to shrink and never grow. Four metrics are
ratcheted against the base branch: compiler warnings per category,
testable-layer coverage with 80% required on lines a change adds,
skipped-test count, and Periphery's dead-declaration total. Custom
rules enforce the layer direction, ban new singletons, keep SwiftUI
out of Services, and require explicit access control.
URLSessionWebSocketTask over Starscream or NIO: zero
networking dependencies, native backpressure, and it inherits
URLSession's proxy, TLS and cookie handling — which is
what makes Cloudflare Access work at all. The third-party packages are
for presentation and on-device inference: Highlightr, a Mermaid
renderer, and MLX with swift-transformers.
GET STARTED
brew install xcodegen/v1/ws)
or a Centaur control plane
git clone https://github.com/ethenotethan/portal.git
cd portal
swift build # SwiftPM library build
make build # full macOS app
make run # build and launch
make build regenerates the Xcode project from
project.yml first — building a stale
.xcodeproj silently misses new files. On first launch,
enter your gateway URL and API key; Portal converts
https:// to wss:// and appends
/v1/ws for Hermes gateways itself.
